Description
1.Powerful Sanding Capability
The 450W powerful motor oscillates the belt and spindle 58 OPM with a 5/8"" stroke.
Operate with belt speeds up to 1575 FPM and spindle speeds up to 1925 RPM.

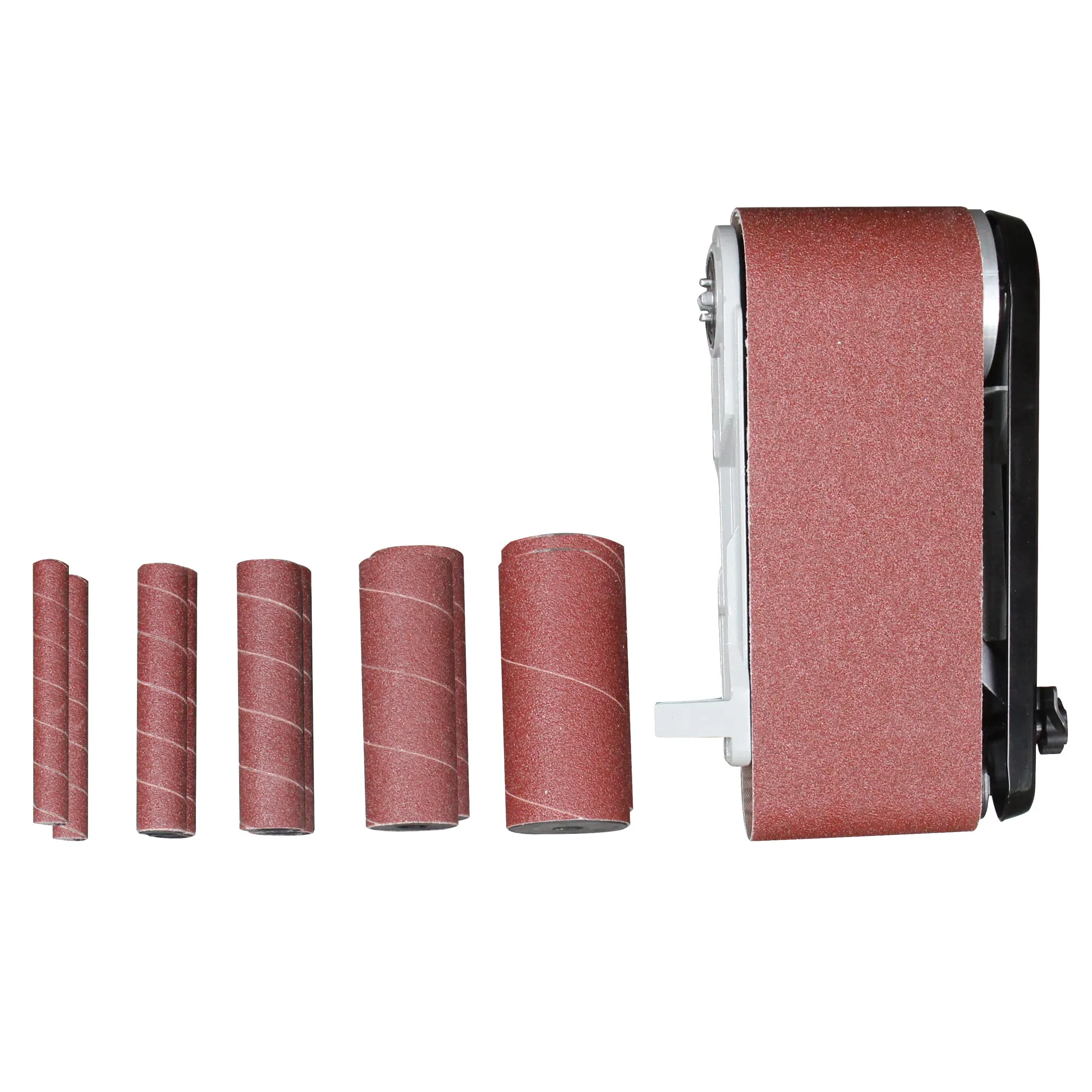

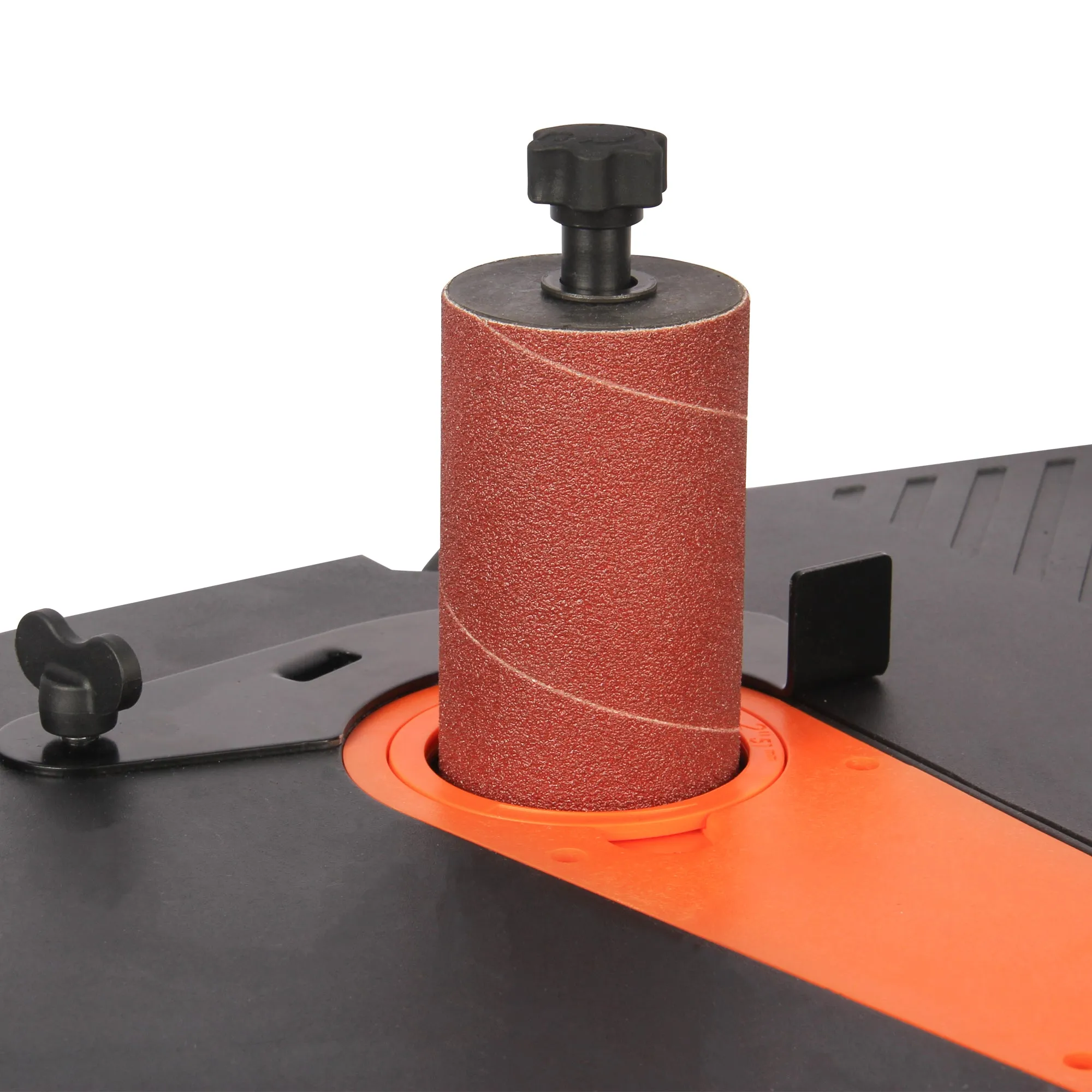

This machine is equipped with 5 sanding sleeves with diameters of 1/2"", 3/4"", 1"", 1-1/2"", 2"" and one 4” × 24"" sanding belt, fully meeting your variety sanding needs.
2.Flexibility and Versatility

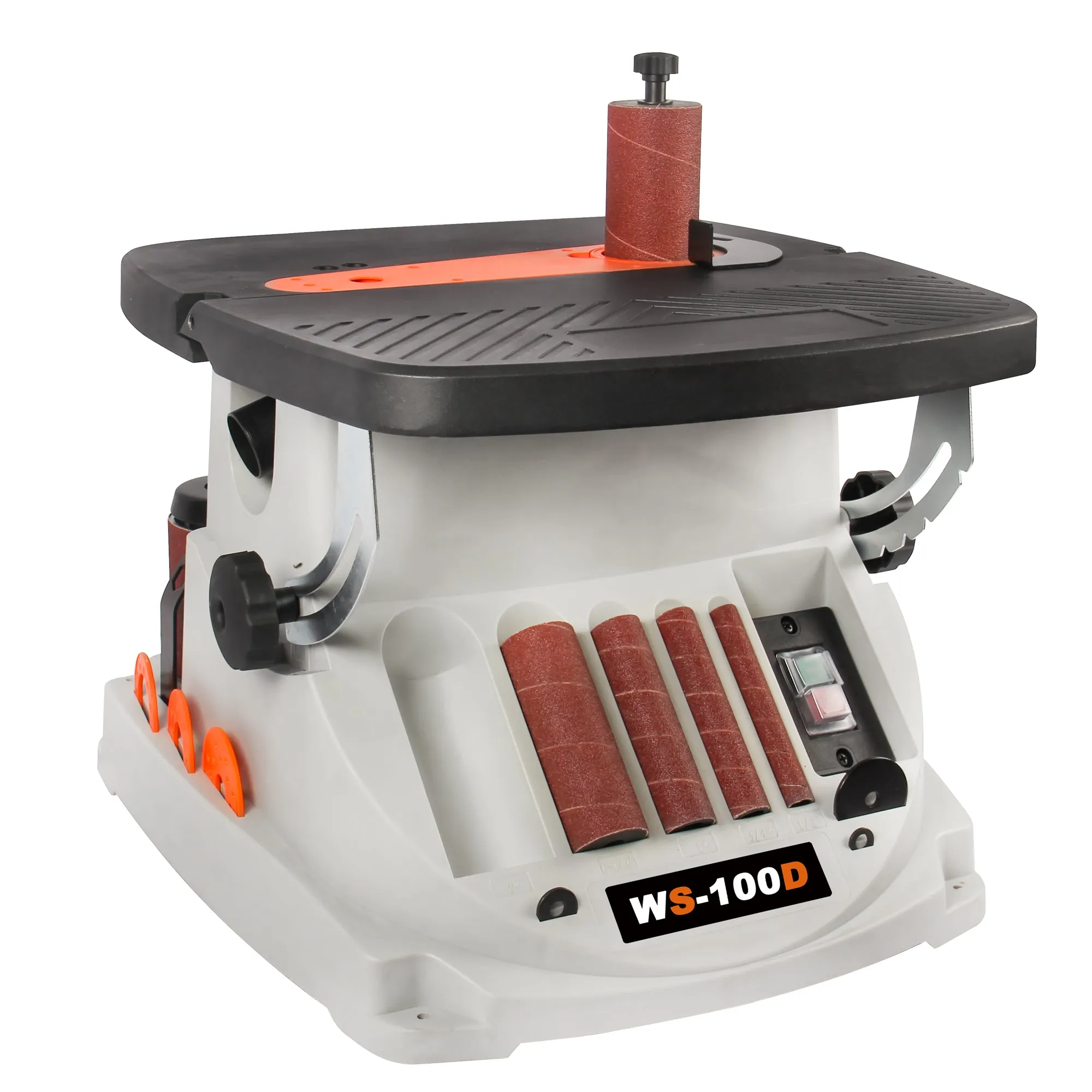

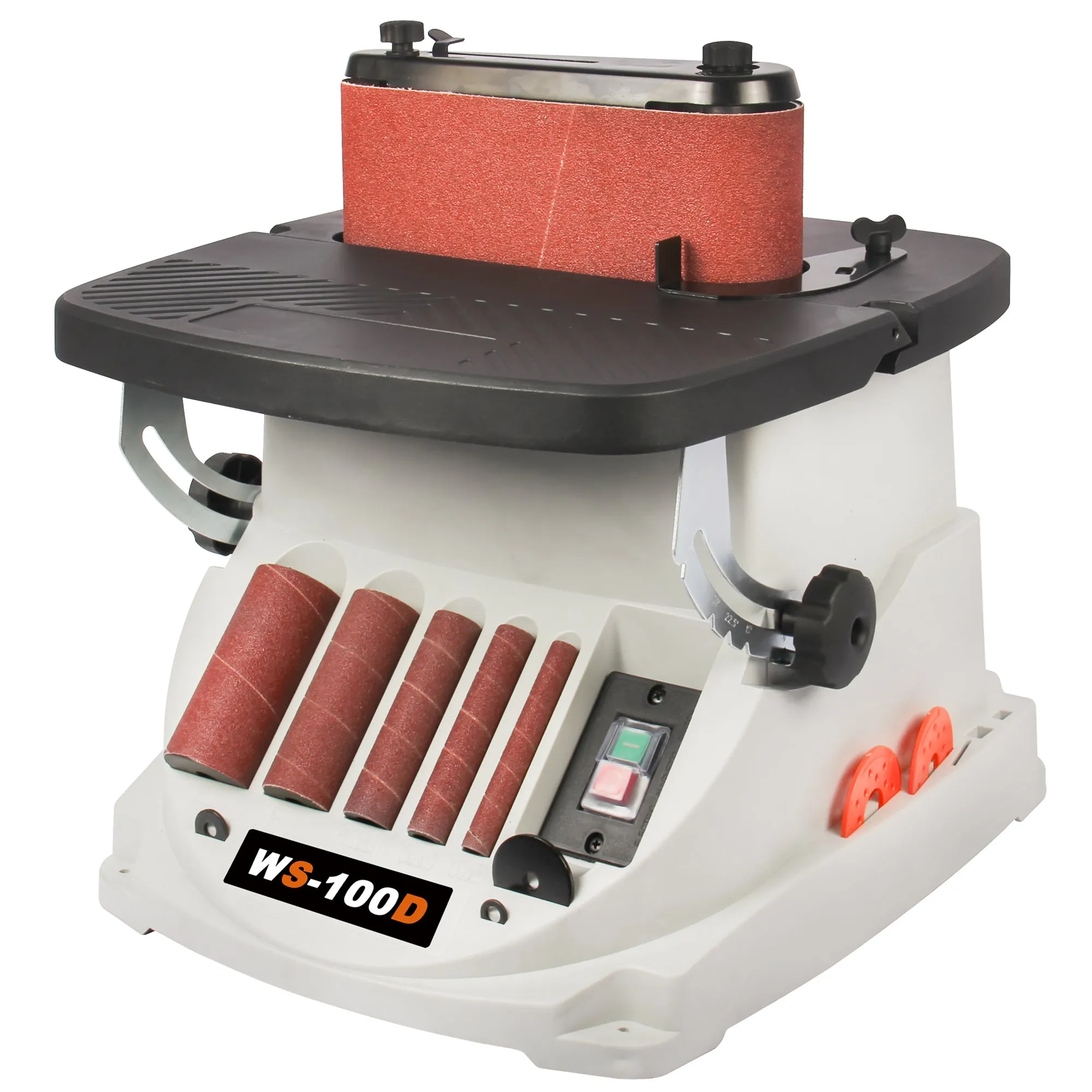

Double configuration with fast easy changing between spindle sander and belt sander. Dual-action rotating and vertically oscillating for fast sanding and improved work rate.

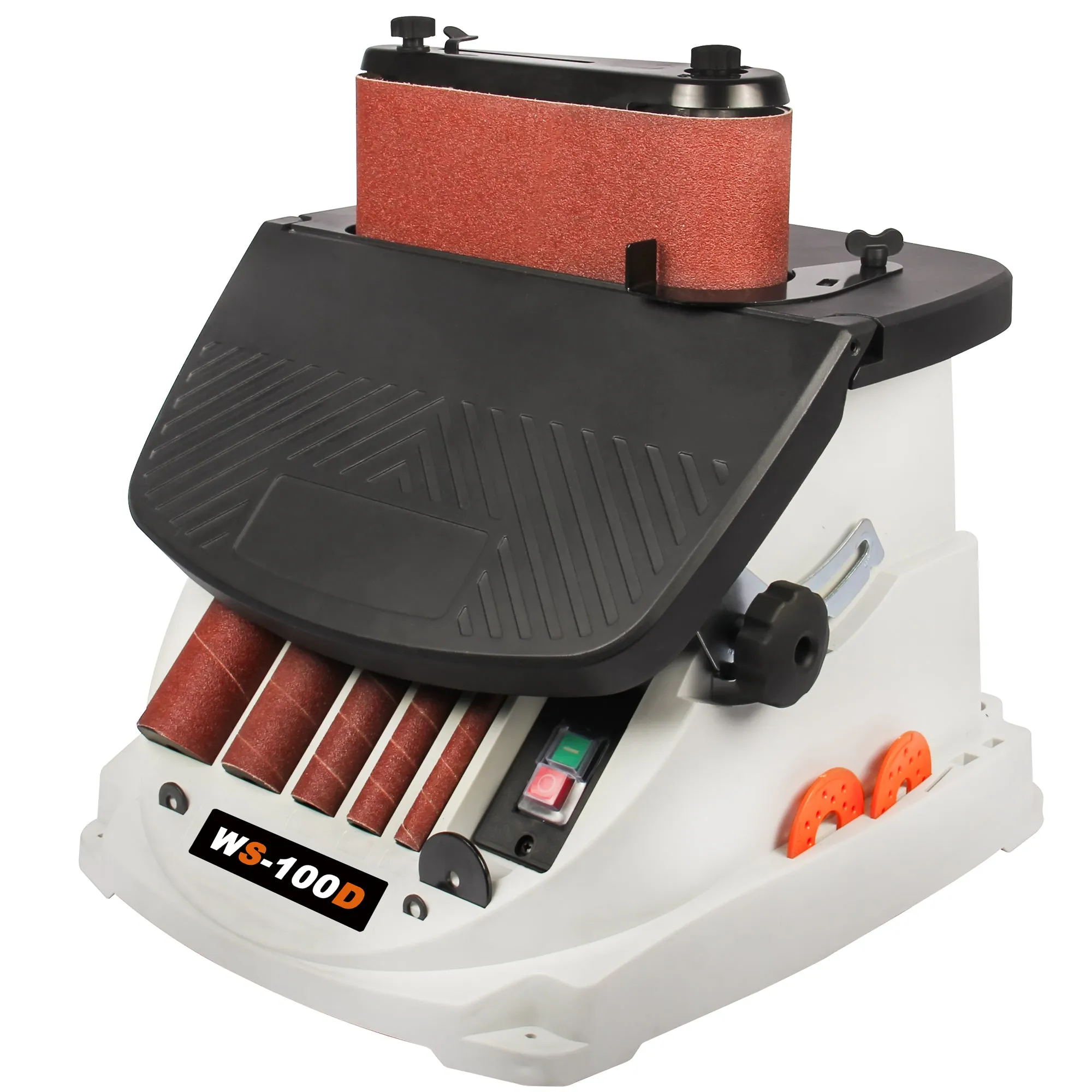

0-45° tilting table for easily handling angled edges and surfaces. This sander can sand arcs, curves, contours, faces and various strangely shaped workpieces.

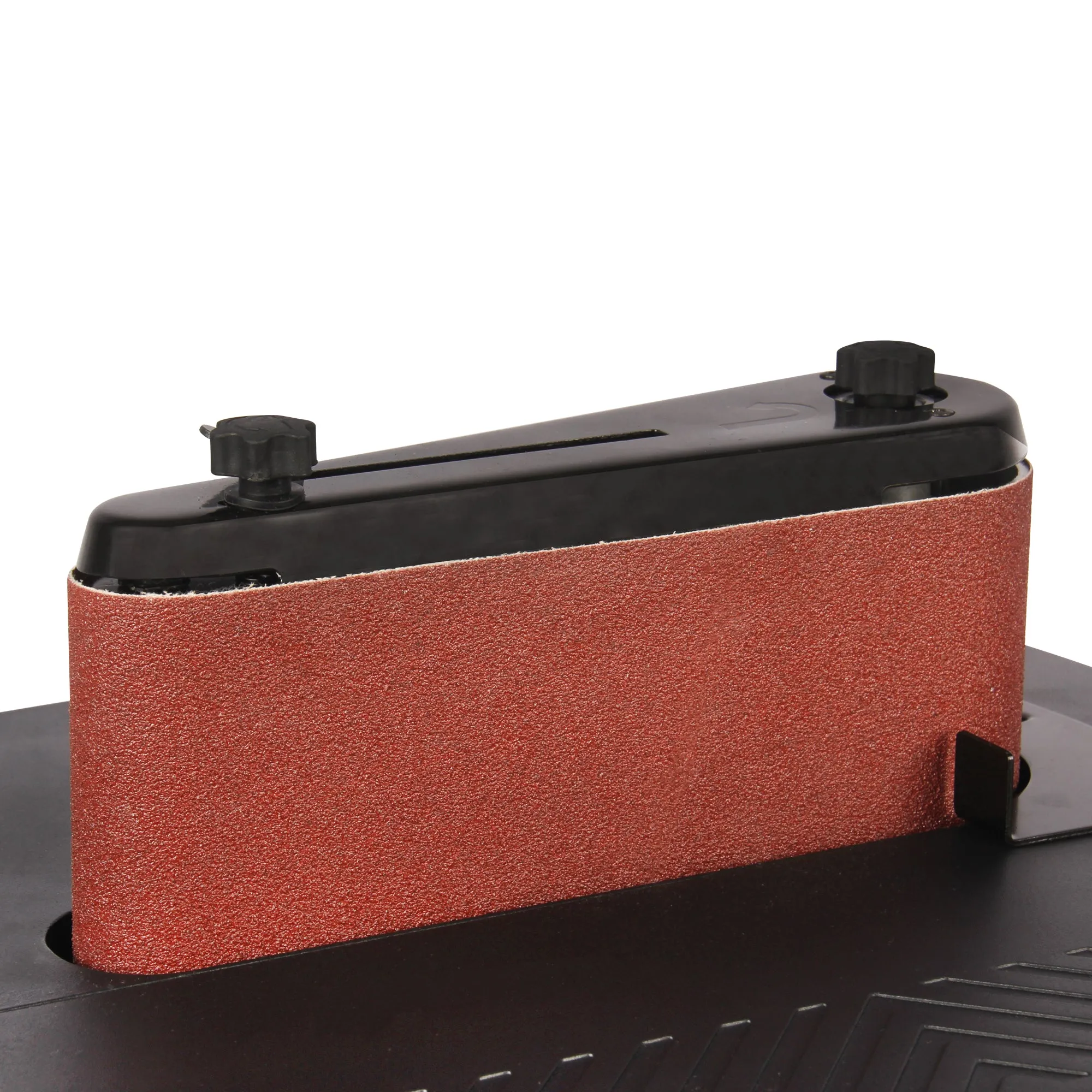

All metal belt sander unit with easy belt change provides maximum workrate with straight and shaped workpieces.
The 1-17/32"" dust port allows woodworkers to connect a dust collection system to reduce cleanup work.""

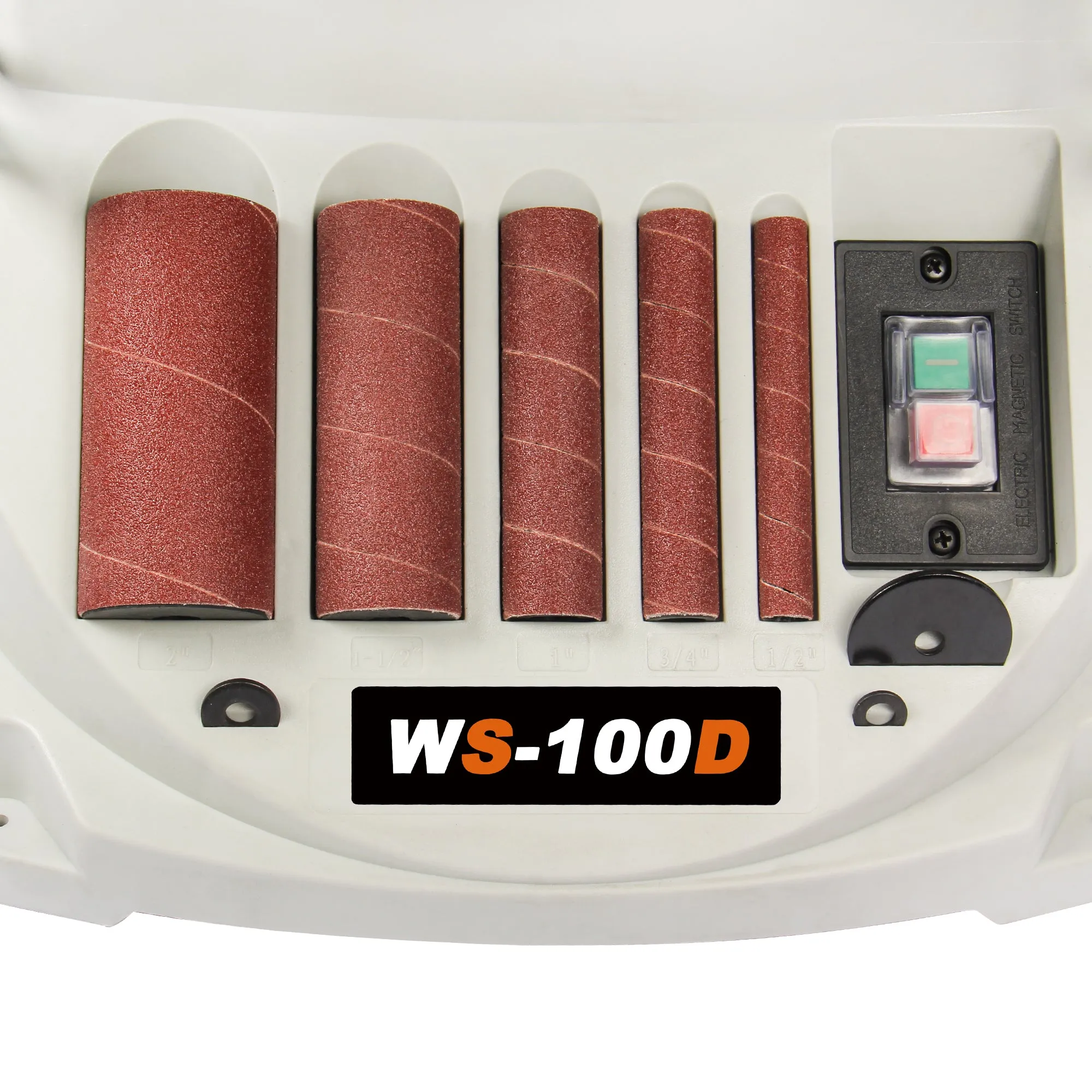

Onboard storage helps to organize all of the throat plates, sanding drums, wrench and table inserts included with this sander.
3.Extensive Use
The belt and spindle sander is a versatile tool that can be used in a wide range of applications across different industries and settings, including woodworking, metalworking, furniture making, home workshops,construction sites,automotive repair shops, educational settings and DIY Projects.
Specifications
Model WS-100D
Motor power 450W
No load speed Spindle 1925rpm/ Belt 1575 ft/min
Oscillations 58 opm/min
Stroke length 15mm /5/8"
Sanding sleeve sizes 1/2", 3/4", 1", 1-1/2", 2"
Belt size 4"×24"
Table size 16-1/6"×17"
Table tilt notches 0°, 15°, 22.5°, 30°, 45°
Dust port dimensions 1-17/32"
Packing size 22"×18.1"×18.5"
N.W./G.W. 23.1/26.5 lbs
